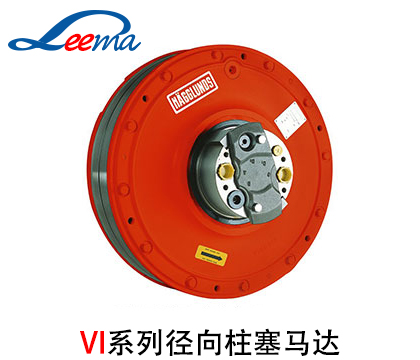

赫格隆液压马达VI系列特性：
无级调速，可快速、频繁启停，对电网冲击小;启动扭矩大，启动能力强，抗过载能力强;设备质量可靠，使用寿命长，故障率低，维护量小，维护费用低;安装方便，操作简易;节能环保。
| 赫格隆VI系列液压马达参数： | |||||||||
| VI 44 | |||||||||
| Size | 3300 | 4700 | 6800 | 9200 | |||||
| Displacement | V g | cm? | 3325 | 4710 | 6790 | 9240 | |||
| Operating pressure, continuous | p max | bar | 320 | 320 | 320 | 320 | |||
| Speed | n max | rpm | 200 | 200 | 170 | 145 | |||
| Specific torque | T S | Nm | 53 | 75 | 108 | 147 | |||
| Type / version | VI 64 | ||||||||
| Size | 11100 | 13500 | 16300 | ||||||
| Displacement | V g | cm? | 11080 | 13599 | 16340 | ||||
| Operating pressure, continuous | p max | bar | 320 | 250 | 250 | ||||
| Speed | n max | rpm | 120 | 110 | 100 | ||||
| Specific torque | T S | Nm | 176 | 215 | 260 | ||||
| Type / version | VI 84 | ||||||||
| Size | 14800 | 17900 | 21300 | 22300 | 25100 | 33800 | 38000 | ||
| Displacement | V g | cm? | 14840 | 17961 | 21375 | 22300 | 25090 | 33780 | 38000 |
| Operating pressure, continuous | p max | bar | 320 | 320 | 320 | 320 | 320 | 250 | 250 |
| Speed | n max | rpm | 90 | 85 | 80 | 55 | 75 | 35 | 60 |
| Specific torque | T S | Nm | 236 | 286 | 340 | 355 | 399 | 538 | 605 |
