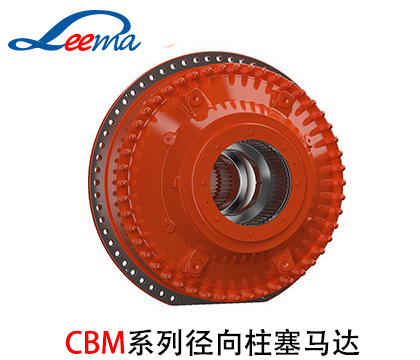

赫格隆Hagglunds液压柱塞马达CBM系列：
无级调速，可快速、频繁启停，对电网冲击小;启动扭矩大，启动能力强，抗过载能力强;设备质量可靠，使用寿命长，故障率低，维护量小，维护费用低;安装方便，操作简易;节能环保。
| 赫格隆CBM系列液压马达常见型号及其参数： | |||||||
| 赫格隆CBM 2000液压马达 | |||||||
| Size | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Displacement | V g | cm? | 75838 | 88279 | 100782 | 113726 | 126732 |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 |
| Speed | n max | rpm | 53 | 44 | 38 | 33 | 30 |
| Specific torque | T S | Nm | 1200 | 1400 | 1600 | 1800 | 2000 |
| Type / version | 赫格隆CBM 3000液压马达 | ||||||
| Size | 2200 | 2400 | 2600 | 2800 | 3000 | ||
| Displacement | V g | cm? | 138670 | 151173 | 164117 | 177123 | 190066 |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 |
| Speed | n max | rpm | 27 | 24 | 22 | 20 | 18 |
| Specific torque | T S | Nm | 2200 | 2400 | 2600 | 2800 | 3000 |
| Type / version | 赫格隆CBM 4000液压马达 | ||||||
| Size | 3200 | 3400 | 3600 | 3800 | 4000 | ||
| Displacement | V g | cm? | 201565 | 214508 | 227514 | 240458 | 253464 |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 |
| Speed | n max | rpm | 16 | 15 | 14 | 13 | 13 |
| Specific torque | T S | Nm | 3200 | 3400 | 3600 | 3800 | 4000 |
| Type / version | 赫格隆CBM 5000液压马达 | 赫格隆CBM 6000液压马达 | |||||
| Size | 4600 | 5000 | 5600 | 6000 | |||
| Displacement | V g | cm? | 290849 | 316798 | 354246 | 380133 | |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |
| Speed | n max | rpm | 11 | 10 | 8 | 8 | |
| Specific torque | T S | Nm | 4600 | 5000 | 5600 | 6000 | |
