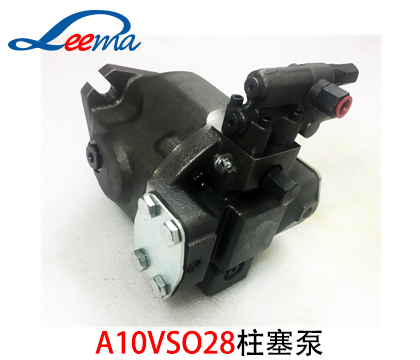

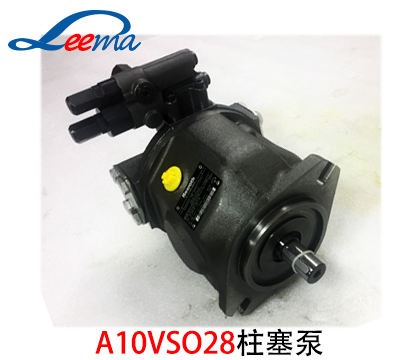

力士乐A10VSO28系列柱塞泵控制方式:
A10VSO28DG --- 两点直动式控制
A10VSO28DR --- 压力控制
A10VSO28DFR1 ---压力和流量控制
A10VSO28DRG ---远程压力控制
A10VSO28DFLR ---压力、流量和功率控制
A10VSO28ED ---电动液压压力控制
A10VSO28ER ---电动液压压力控制
力士乐A10VSO28系列柱塞泵特性:
1、力士乐A10VSO28系列变量轴向柱塞采用斜盘设计,用于闭式回路中的静液压传动。
2、流量与驱动转速和排量成正比,可以达到无极调节。
3、输出流量随斜盘摆角从零增加到最大值而增加。
4、斜盘摆过中位,可以平稳的改变液流方向
5、高通用性的控制块提供各种控制和调节功能。
6、每个高压侧均配有两个溢流阀,用来防止静液压传动过载
7、溢流阀同时也具有补油阀的作用。
8、内置补油泵用作供油和控制泵
9、最大补油压力由内置补油溢流阀限制。
力士乐A10VSO28系列柱塞泵安装说明:
1、试运行和运行期间,轴向柱塞元件必须充满液压油并且排尽空气,经过较长时间的停机后也是需要经行注油和排气操作,以为系统可能会通过液压管路泄油。
2、壳体内部的泄露油必须通过壳体最高的泄油口排至油箱,油口的最小吸油压力不得低于0.8bar的绝对压力。(冷启动的时候为0.5bar绝对压力)
3、在所有的工作状态中,吸油管路和壳体泄油管路必须进入油箱,而且必须低于最低油液面。
力士乐A10VSO28系列闭式变量泵技术和结构详解
3.1 轴向柱塞元件:斜盘结构变量泵,公称压力300bar,峰值压力350bar。
3.2 工作方式:是一种用于闭式回路的液压泵。
3.3 规格(cc/r):18、28、45、63.
3.4 控制装置:机械转动销控制;或液压控制(直动式或先导式或机械伺服);或电气控制(带比例电磁铁或带开关电磁铁)。
3.5 压力切断阀:无压力切断阀或带压力切断阀(带DA控制阀的型式为标配)。
3.6 零位开关(仅适用于HW):无零位开关或带零位开关(带DEUTSCH插头)。
3.7 机械行程限制器:无机械行程限制器或带机械行程限制器(外部可调)。
3.8 零位弹簧定心(仅适用于MD):无弹簧对中归原始位置或带弹簧对中归原始位置。
3.9 DA控制阀:无DA控制阀,或带DA控制阀(固定设定值),或带DA控制阀(可使用控制杆机械调节),或带DA控制阀(固定设定值,安装有液压寸劲阀,使用制动液控制),或带DA控制阀(固定设定值,带先导控制装置油口),或带DA控制阀(固定设定值,安装有液压寸劲阀,使用矿物油控制)。
3.10 系列:系列1,标号0.
3.11 旋转方向:顺时针或逆时针(从轴端看)。
3.12 密封:丁晴橡胶,轴密封圈为氟橡胶。
3.13 轴伸:花键轴(ANSI B92.1a-1976).
3.14 安装法兰:SAE J744-2-螺栓。
3.15 工作油口(公制固定螺栓):SAE法兰油口A/B,左边同侧,吸油口S下侧;或A/B螺纹油口,右边同侧,吸油口S下侧。
3.16 补油泵:无内置补油泵或带内置补油泵,均可带或不带通轴驱动。
3.17 安全阀:带高压溢流阀,直动式(固定设定值)。设定范围:100-250bar或250-320bar。可带或不带旁通阀。
3.18 过滤:过滤器安装于辅助泵吸油管路(过滤器不包括在供货范围内);或过滤在补油泵压油回路(带外部补油回路过滤油口);或外部供油(无内置补油泵的型式-N00,K…)。
3.19 电磁铁插头(仅适用于EP、EZ和DA):DEUTSCH插头(注塑、2芯),或HIRS CHMANN插头。
A10VO28DR/52R-PSC62N00 | A10VO28DFR1/31L-VSC61N00 |
A10VO28DRG/31R-PSC62K01 | A10VO28DFLR/31L-PSC12N00-SO681 |
A10VO28DFLR/31R-PSC12N00 | A10VSO28DFEO/31R-PPA12KC1 |
A10VO28DFR/31R-VSC62N00 | A10VO28DR/31L-VSC62K68-SO200 |
A10VO28DFLR/31R-PSC62K02 | A10VO28DFLR/31R-PWC11N00-SO160 |
A10VSO28DRG/31R-PSA12K52 | A10VO28DRG/52L-PSC61N00 |
A10VO28DR/31R-PSC62K52 | A10VO28DFR/52R-PSC62K68 |
A10VO28DFR1/31R-PSC12N00-SO52 | A10VSO28DFLR/31R-PSA12N00 |
A10VSO28DFLR/31R-PSA12K52 | A10VO28DFR/52L-PSC64N00-S1045 |
A10VSO28DFR/31R-VPA12N00 | A10VO28DR/31L-PSC62K52 |
A10VO28DR/31R-PSC62K01 -S1131 | A10VO28DR/31R-PSC12N00 |
A10VO28DFR1/31R-PRC12K68-SO420 | A10VO28DR/31R-PSC62K02 |
A10VO28DR/31L-PRC62K68 | A10VSO28DFEO/31R-PRA12KB3 |
A10VO28DFR1/31R-PSC62N00-SO52 | A10VO28DR/31R-VSC12N00 |
A10VO28DR/31R-PSC12K68-SO420 | A10VSO28DFEO/31R-PRA12KC3 |
A10VO28DR/31R-PSC12K01SO381 | A10VO28DFR/31L-PSC62K52 |
A10VO28DFR1/31L-PSC62K01 | A10VO28DFR1/31R-PSC12K68-SO420 |
A10VSO28DFEO/31R-PRA12KB3-SO479 | A10VO28DRG/31L-PSC12K02 |
A10VO28DR/52R-PRC62K68 | A10VO28DRG/52R-VSC61N00 |
A10VSO28DFEO/31L-PRC12N00 | A10VO28DRG/52R-PRC62K68 |
A10VO28DR/31R-PKC62N00 | A10VO28DR/31R-VKC62K68 |
A10VSO28FE1/31R-PPA12N00 | A10VSO28DFLR/31R-VPA12N00 |
A10VSO28DFLR/31R-PPA12G80 | A10VO28DRG/31R-PSC62N00 |
A10VO28DR/31R-PSC62K01ES1743 | A10VO28DR/31R-PSC11N00 |
A10VSO28DFLR/31R-PPA12N00 | A10VO28DFR1/31R-PSC62K01 |
A10VO28DFR/31R-PSC12N00 | A10VO28DRG/52R-PSC12K68 |
A10VO28DFR/31R-PSC62K01 | A10VSO28DFR1/31R-PPA12L30 |
A10VO28DFLR/31R-PSC62K01-SO52 | A10VSO28DFEO/31R-PRA12KB3-SO480 |
A10VSO28DFLR/31L-PPA12N00-SO160 | A10VO28DFR1/52L-PSC12N00-SO702 |
A10VO28DFR/31R-PSC62N00 | A10VO28DR/52R-PSC64N00-SO97 |
A10VO28DFR1/31R-PRC12K68 | A10VSO28DRG/31R-PPA12K68 |
A10VO28DFR/31R-VSC62K68 | A10VSO28DFEH/31R-PSA12KC2 |
A10VO28DR/31R-PSC62N00 | A10VO28DR/31R-PSC62K01S1855 |
A10VSO28DR/31R-PPA12N00 | A10VO28DRG/31R-PSC61N00-SO854 |
A10VSO28DFR1/31R-VPA12K02 | A10VO28DFLR/31L-PSC62K68 |
A10VO28DFR1/31L-PSC12K01 | A10VO28DR/31L-VRC12K01 |
A10VO28DFLR/31R-PSC62N00 | A10VSO28DFR1/31R-PPA12N00 |
A10VO28DR/52L-VSC64N00 | A10VSO28DR/31R-PPA12K01 |
A10VSO28DRG/31R-PSA12KB2 | A10VO28DFR/31L-PSC61N00 |
A10VSO28DFEO/31R-PRA12KD3-SO479 | A10VSO28DG/31R-PSA12N00 |
A10VSO28DR/31L-PPA12K01 | A10VO28DRG/31R-PSC12H00-SO381 |
A10VSO28DRG/31R-VPA12N00 | A10VSO28DR/31R-PSA12N00-SO769 |
A10VO28DRG/52L-PSC62N00 | A10VSO28DR1/31R-PPA12KB2SO275 |
A10VO28DFR1/31L-PRC62N00 | A10VSO28DR/31R-PPA12K02 |
A10VSO28DFLR/31R-PPA12K01-SO200 | A10VSO28DRG/31L-VPA12N00 |
A10VO28DR/31R-PKC61N00 | A10VSO28DFLR/31R-PPA12K01 |
A10VSO28DFLR/31R-PRA12K01 | A10VSO28DFR/31R-PPA12C11 |
A10VO28DR/31L-PSC12K01 | A10VO28DRG/31L-PSC62N00-SO854 |
A10VSO28DFEH/31R-PPA12KD3 | A10VSO28DRG/31R-VPA12K01 |
A10VSO28DFR/31R-PPA12K01-SO200 | A10VO28DR/31R-PSC62K01-S1131 |
A10VSO28DR/31R-PPA12L40 | A10VSO28DFEH/31R-PPA12KC1-SO479 |
A10VO28DR/31R-VSC62K01 | A10VO28DR/31L-PSC62K01S1581 |
A10VO28DFR1/31L-VSC11N00 | A10VSO28DFLR/31R-PPA12N00-SO385 |
A10VO28DR/52R-VSC62N00 | A10VO28DFR1/31L-PRC62K01-SO277 |
A10VSO28DFR/31R-VSA12N00 | A10VO28DFLR/31L-PSC12N00-SO97 |
A10VO28DR/31R-VSC62K01SO809 | A10VSO28DFR/31R-PPA12N00 |
A10VSO28DR/31L-PPA12G20 | A10VSO28DFLR/31R-PPA12KB3 |
A10VO28DFR1/31L-PSC12N00-SO420 | A10VO28DFR1/31L-VSC62N00 |
A10VSO28DR/31R-PPA12KB3 | A10VSO28DFLR/31R-PPA12K51 |
A10VSO28DFR1/31R-VPA12N00 | A10VO28DFR1/31R-PSC12K01 |
A10VO28DFR/52R-PSC62N00-SO97 | A10VO28DR/31R-VSC62K01S1743 |
A10VO28DRG/31L-VSC61N00 | A10VO28DRG/31L-PSC61N00-SO277 |
A10VO28DRG/52L-PRC62K68 | A10VO28DFR1/52R-VSC64N00-SO97 |
A10VSO28DR/31R-PPA12KB2 | A10VSO28DFR1/31R-VSA12N00 |
A10VO28DFLR/31R-VSC62N00-SO793 | A10VO28DFR1/52R-VSC61N00 |
A10VO28DFLR/31L-PSC12N00-SO696 | A10VSO28DFLR/31R-VPA12G30 |
A10VO28DFR1/52L-PRC62K68 | A10VO28DRG/31L-VSC62K52 |
A10VSO28DFR/31L-PPA12N00 | A10VSO28DR/31L-PPA12L40 |
A10VSO28DFLR/31R-PPA12N00-SO258 | A10VSO28DFR1/31L-PSA12N00 |
A10VO28DFR/31R-PRC62N00-SO97 | A10VO28DFR1/31L-PSC62N00 |
A10VSO28DR/31R-PSA12K25 | A10VO28DFR1/31R-PSC62K01-SO52 |
A10VO28DRG/31R-PSC61N00-S1062 | A10VO28DR/31R-PSC62N00-SO13 |
A10VO28DR/31R-VSC62N00-SO 52 | A10VO28DFR1/31L-PSC62K68-SO277 |
A10VSO28DFR1/31R-PPA12G40 | A10VO28DFR1/31R-PSC62K68 |
A10VSO28DFEH/31R-PRA12KD3-SO479 | A10VO28DFR1/31L-VSC62N00-SO413 |
A10VSO28DR/31R-PPA12N00SO169 | A10VO28DFR/31R-PSC62K57 |
A10VSO28DFR1/31R-PPA12N00-SO32 | A10VSO28DFEH/31R-PRA12KC1 |
A10VSO28DFLR/31R-PPA12KB3 | A10VO28DRG/31R-PSC12N00 |
A10VSO28DFR1/31R-PPA12N00-SO20 | A10VO28DFLR/31R-PWC12N00-SO52 |
A10VO28DFR/31L-PRC62N00-SO277 | A10VO28DFR/31R-PSC62K01-SO52 |
A10VO28DR/31L-PSC12N00 | A10VSO28DFR1/31R-PPA12N00-SO413 |
A10VSO28DFEO/31R-PSA12KC1 | A10VSO28DFE1/3XR-PSA12K52 |
A10VSO28DRG/31R-PSA12N00 | A10VO28DFR/31L-VSC11N00 |
A10VSO28DFR/31R-PPA12N00-SO277 | A10VO28DFR1/31R-VSC62K68-S1336 |
A10VSO28DFEO/31R-PRA12KC3-SO567 | A10VO28DFR/31R-PSC61N00-SO52 |
A10VO28DFR/31L-PKC61N00 | A10VO28DR/52L-PRC62K68 |
A10VO28DR/31R-PRC62K01 | A10VSO28DR/31R-PPA12N00SO13 |
A10VO28DFR1/31L-VSC12N00-S1060 | A10VSO28DFEO/31R-PPA12KD3 |
A10VSO28DFLR/31R-PPA12N00-SO160 | A10VO28DFR1/52R-PRC62K68 |
A10VO28DR/31R-PSC62K02-SO200 | A10VO28DR/52L-PSC61N00 |
A10VSO28DFR/31R-PPA12K52 | A10VO28DFLR/31L-PSC12K01-SO681 |
A10VSO28DFEH/31R-PRA12KC1-SO479 | A10VO28DFR1/52R-PXC12N00 |
A10VSO28DRG/31L-PSA12N00 | A10VO28DFR1/31R-PSC62N00 |
A10VO28DFR/31L-PRC62K01 | A10VO28DFLR/31R-PKC62N00 |
A10VSO28DFEH/31R-PPA12K01-SO480 | A10VO28DR/52L-PSC62N00-S1048 |
A10VSO28DFR1/31R-PSA12N00 | A10VO28DR/31R-PSC62G44 |
A10VSO28DFLR/31R-PPA12K25 | A10VO28DR/52R-PPC11N00 |
A10VO28DFR1/52R-PSC11N00-SO736 | A10VSO28DRG/31R-PPA12N00 |
A10VSO28DFR/31R-PPA12O30 | A10VO28DR/31R-PSC62K01S1581 |
A10VSO28DFLR/31R-PPA12N00 | A10VO28DFR/52R-PKC64N00-SO97 |
A10VO28DFLR/31R-PSC62K01 | A10VSO28DFR/31R-PPA12K01 |
A10VSO28DFR1/31R-PSA12K52-SO501 | A10VO28DFR/31L-VSC62K01 |
A10VO28DFR1/52R-PSC62N00 | A10VO28DRG/52R-PSC62K68 |
A10VO28DFLR/31R-VRC12K68 | A10VSO28DFR/31R-PPA12KB2 |
A10VO28DFR1/31L-PSC62K02 | A10VSO28DFR/31R-PPA12KB3 |
A10VSO28DFR1/31R-PPA12K01 | A10VO28DFR1/31R-PSC62KA1 |
A10VO28DFLR/31L-PSC61N00 | A10VO28DRG/52R-PSC62N00 |
A10VO28DR/31L-VSC62K01S1581 | A10VSO28DFR/31R-PSA12N00 |
A10VO28DFR/31L-PSC12N00 | A10VO28DRG/31L-VSC62K01 |
A10VO28DFR1/31R-VSC62N00 | A10VO28DFLR/31R-VSC12K01 |
A10VO28DFR/52L-PSC64N00-S1047 | A10VO28DFR/31R-PSC62O40 |
A10VO28DR/31R-PSC12K01 | A10VO28DFR/31L-PSC62K01-SO52 |
A10VSO28DFEH/31R-PSA12KD3 | A10VO28DFR/31R-PSC62K02 |
A10VSO28DFEO/31R-PPA12KC1-SO479 | A10VSO28DFR1/31R-PPA12K25-S1134 |
A10VO28DR/31R-VSC12N00 | A10VSO28DG/31R-PPA12N00 |
A10VSO28DR/31R-VPA12N00 | A10VSO100DFEO/31R-PPA12K26-SO287 |
A10VSO28ED72/31R-PPA12N00H | A10VSO100DFR1/31R-PPA12N00-SO280 |
A10VSO28DRG/31R-PPA12K01 | A10VSO28DFEO/31R-PSA12KD3-SO479 |
A10VSO28DFEH/31R-PRA12N00 | A10VSO28DFEH/31R-PRA12KD3 |
A10VO28DFR1/31L-PRC62K68 | A10VO28DFR/31L-VSC62N00 |
A10VSO28DR/31R-PRA12N00 | A10VO28DFR1/52R-PSC62N00-SO97 |
A10VO28DFLR/31R-PSC62N00 | A10VSO28DFLR/31R-PSA12N00 |
A10VO28DR/31R-PSC62K01 | A10VO28DFR1/52L-PSC62K01 |
A10VO28DFR1/31R-PSC12N00 | A10VSO28DFEH/31R-PPA12KC1 |
A10VO28DR/31R-PSC62K01SO52 | A10VO28DR/52R-VSC61N00-SO97 |
A10VSO28DFLR/31R-PPA12K01 | A10VSO28DR/31L-PPA12N00 |
A10VSO28DRG/31L-PPA12N00 | A10VO28DFR/31R-PSC62N00-SO169 |
A10VSO28DFR/31R-PPA12G60 | A10VSO28DFLR/31R-VPA12G20 |
A10VO28DR/31R-PSC62K01-SO382 | A10VO28DFR/52R-PRC62K68 |
A10VO28DFR/52R-VSC12N00 | A10VO28DFR/31L-VSC11N00SO413 |
A10VO28DFR/52R-VSC62K01 | A10VO28DR/31L-PSC62N00 |
A10VO28DFR1/31R-PSC62K02 | A10VSO28DFEO/31R-PRA12KD3 |
A10VO28DFE1/31R-PSC12N00 | A10VO28DFLR/31R-PSC12K01-SO659 |
